DO5510HA Oxygen Meter Dissolved Oxygen Analyzer with Large LCD Display 0- 20.0 Mg/L(Liters)

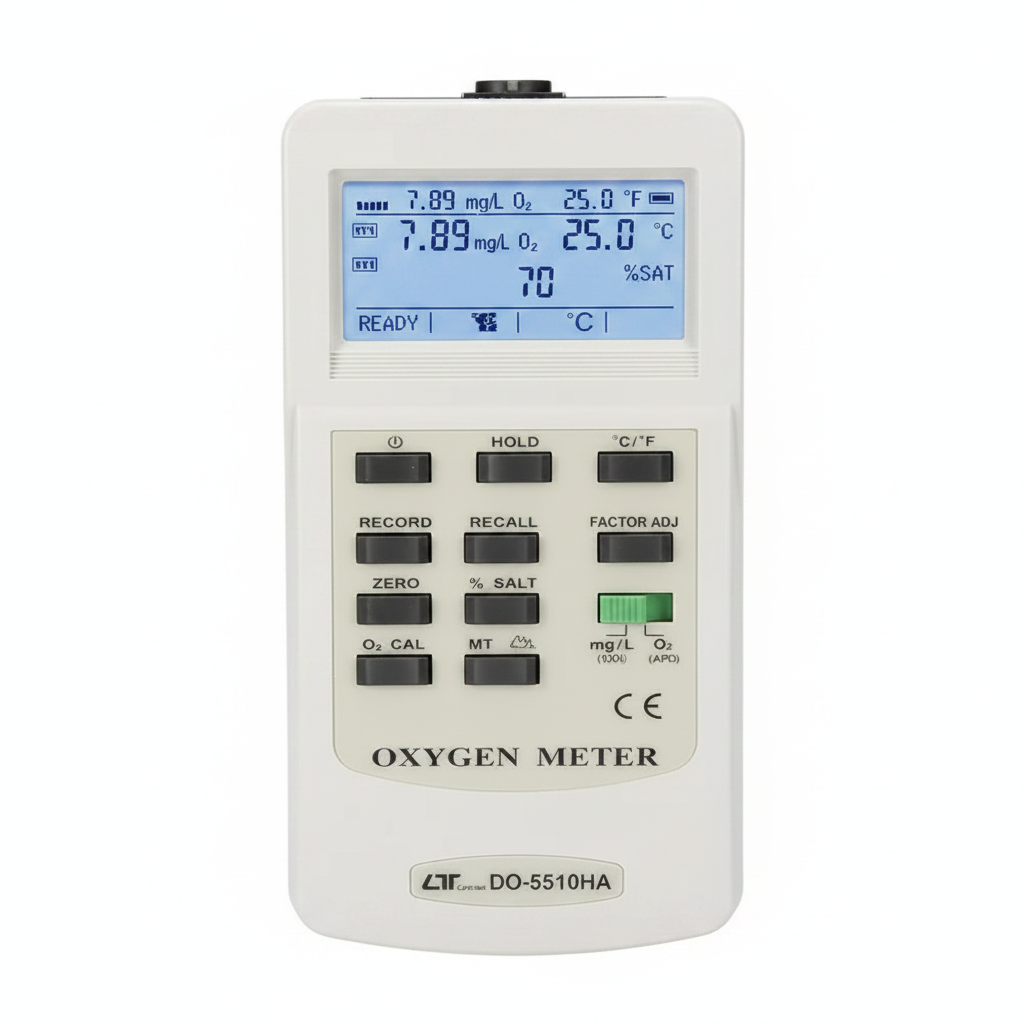

DO5510HA Oxygen Meter Dissolved Oxygen Analyzer with Large LCD Display 0- 20.0 Mg/L(Liters) is a smart oxygen and dissolved oxygen analysis instrument with a large LCD display. It consists of a polarographic probe with a temperature sensor and is designed to measure dissolved oxygen, oxygen content in air, and temperature.

Specifications

• Model: DO5510HA

• Circuit: Monolithic LSI circuit

• Display: Dual meter display, 13mm large LCD with adjustable contrast

• Oxygen Solubility Range: 0 — 20.0 mg/L

• Oxygen Content of Air Range: 0 — 100.00%

• Temperature Range: 0—50

• Oxygen Solubility Resolution: 0.1mg/L

• Oxygen Content of Air Resolution: 0.1% O2

• Temperature Resolution: 0.1

• Oxygen Solubility Accuracy: ±0.4mg/L

• Oxygen Content of Air Accuracy: ±0.7%

• Temperature Accuracy: ±0.8/1.5

• Sensor Structure: Polarographic probe with an independent temperature sensor

• Temperature Compensation: Automatically from 0 to 50

• Salt Compensation: 0 to 39% concentration

• Altitude Compensation: 0 to 3900 meter

• Data Output: RS-232 PC interface

• Excess Input Display: Shows “- - - -”

• Operating Temperature: 0 to 50 (32 to 122)

• Operating Humidity: Maximum 80%

• Sampling Time: Approximately 0.4 second

• Battery: 006P DC 9V battery

• Power Consumption: Approximately DC 6.6 mA

• Weight: 335g, including the probe batteries

• Main Meter Size: 180×72×32mm

• Probe Size: 170mm×26mm diameter

• Certification: CE

Features

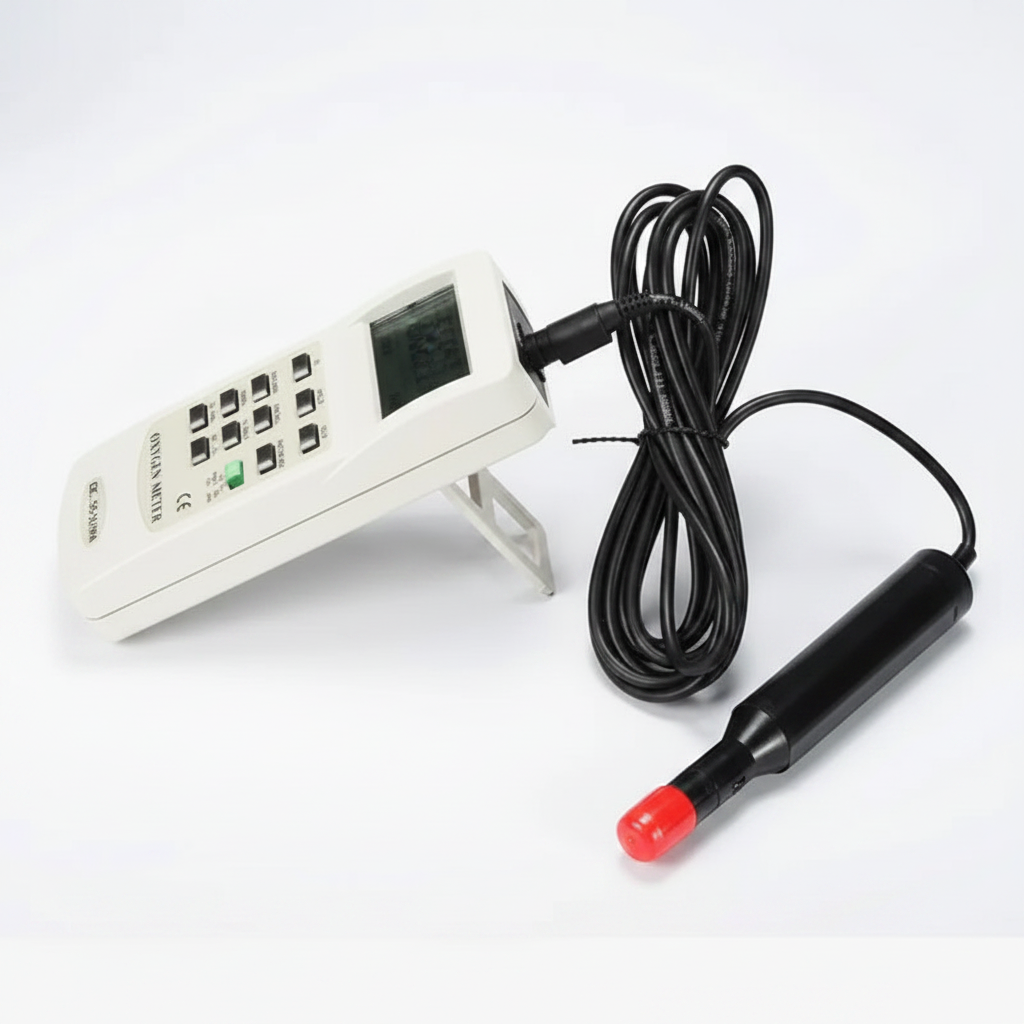

• Polarographic Probe: Includes a polarographic probe with temperature sensor for dissolved oxygen, oxygen content, and temperature measurements.

• BOD Bottle Connection: High dissolved oxygen probe can be connected to a BOD bottle.

• Automatic Temperature Compensation: Supports automatic temperature compensation from 0 to 50 degrees Celsius.

• Salt and Altitude Compensation: Includes salt content and altitude compensation using panel button adjustment.

• Large LCD Display: Contrast adjustment helps make readings clear.

• Double Reading: Provides oxygen and temperature readings at the same time.

• Memory Function: Can record and bring up minimum, maximum, and average data.

• Data Hold Function: Supports data hold for saved readings.

• Auto Power Off: Auto power off function helps save battery, with manual shutdown also available.

• Temperature Unit Switching: Free to switch between Fahrenheit and Celsius temperature readings.

• Durable Materials: Instrument parts are made of durable material, with the shell made from high-quality ABS plastic.

Applications

• Use Areas: Can be used in aquariums, glass fish ponds, mining, medical research, agriculture, laboratories, water environments, and universities.

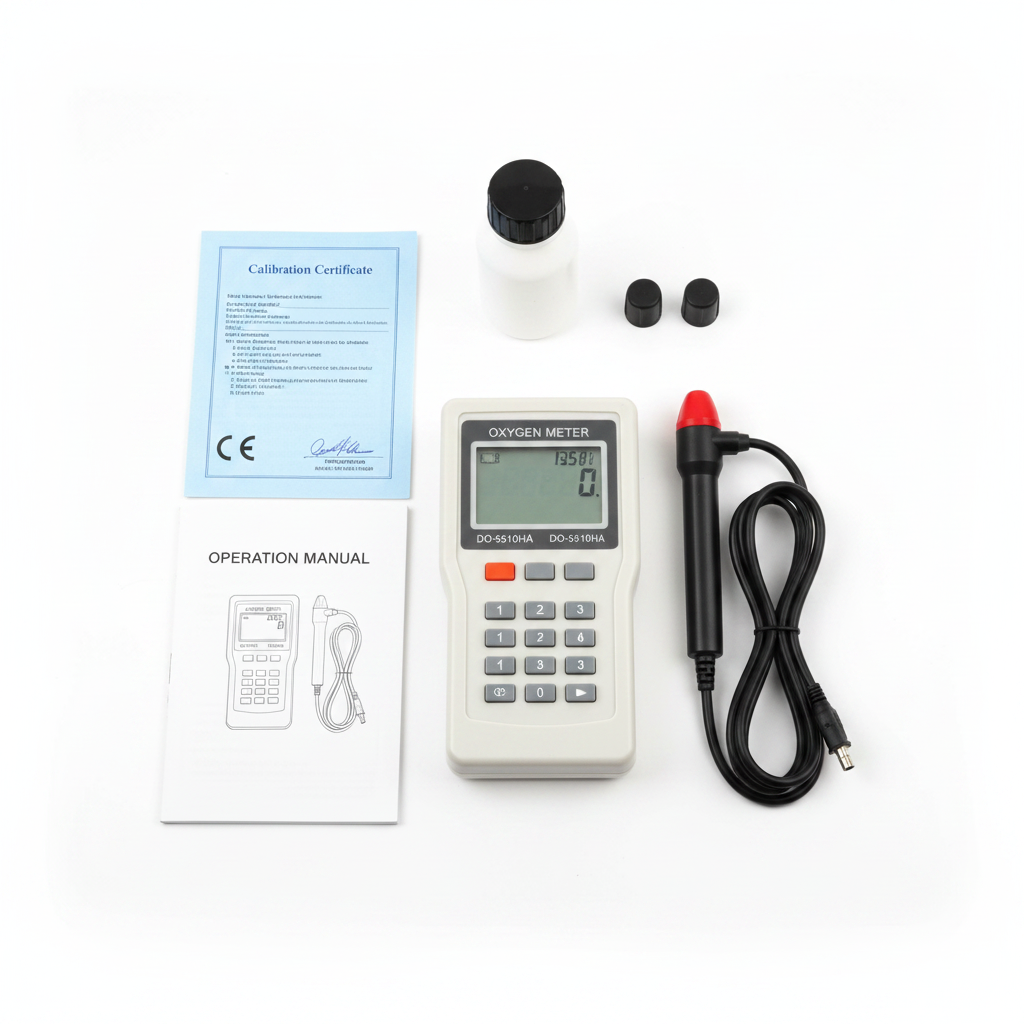

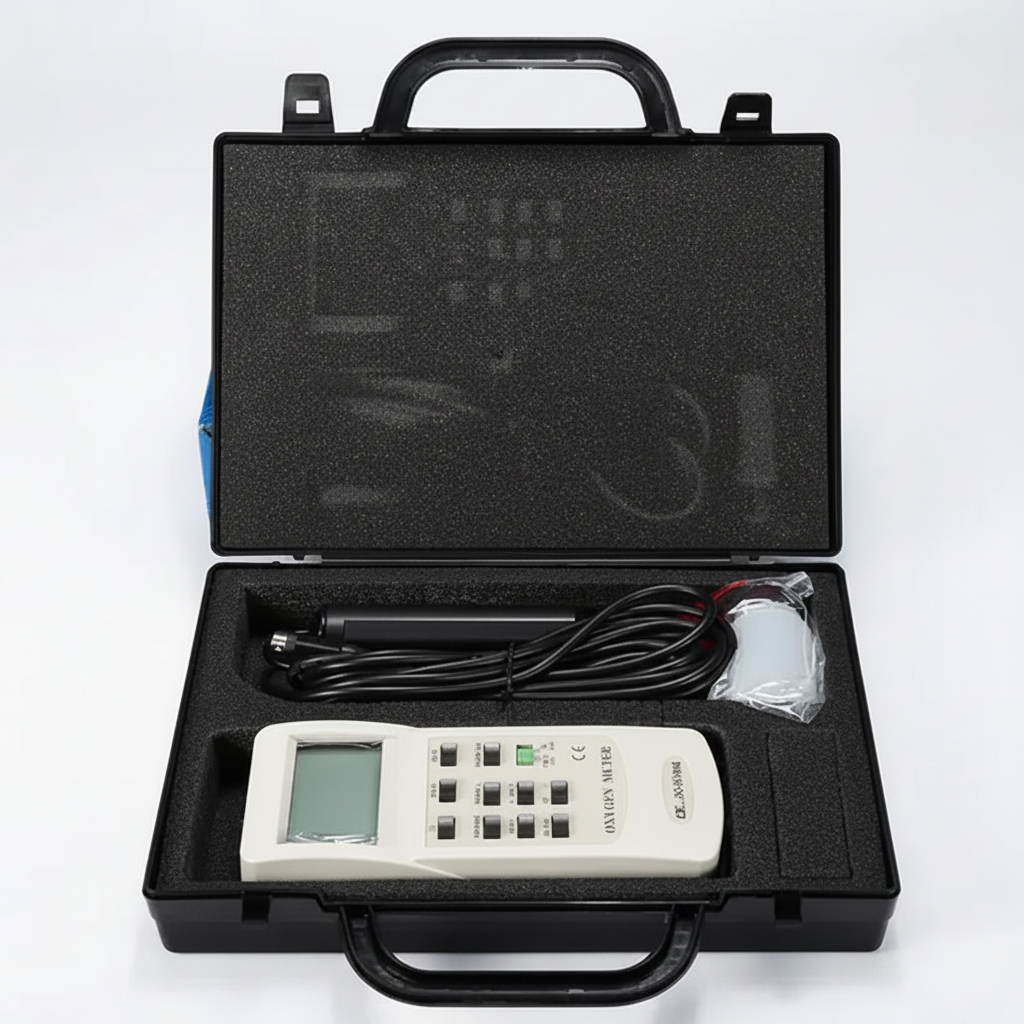

Package Contents

• Oxygen Sensing Probe: OXPB-11, 1PC

• User's Manual: 1PC

• Take-Out Bag: 1PC

• Spare Diaphragm: OXDP-02, 5PCs per pack, 1 set

• Probe Filling Electrolyte: OXEL-03, 1 set

Optional Accessories

• Oxygen Sensing Probe: OXPB-11

• Spare Diaphragm: 5PCs per package, OXDP-02

• Probe Filling Electrolyte: OXEL-03
